The history of Japanese swords
The special sharpness of the katana
The special art of forging ensures the exceptional sharpness. The multiple folding of the metal and the use of carbon give the blade its special properties.
An overview of
the katana (Japanese sword). Then you will also know why it has a
certain price.
Swords forged with the spirit of Japan
Katana
(samurai sword) is a generic term for swords forged in the manner
originally developed in Japan. They are categorised according to size
into katana (tachi, uchigatana), wakizashi and tanto. Craftsmen who
make katana are known as "toko (sword master)", "tosho
(sword master)" or "katana kaji (swordsmith)".
The
soul of the samurai
In addition to its use as a weapon, its
beautiful form has also had a symbolic meaning since ancient times,
and many are collected and highly prized as objects of art. Ancient
and unbroken lineages, including the imperial family and shrines,
value treasure swords (such as the Amenomurakumono tsurugi) as a show
of power. They also functioned as pillars of spiritual culture, "the
soul of the samurai against the backdrop of military rule". They
are characterised by a process of "folding and forging" two
types of metal, hard, brittle steel and soft iron, so that toshin
(blade body) and nakago (core) are combined. The nakago has holes
(mekugi holes) to attach the blade body to the tsuka (handle) with
pin fasteners.
The katana is not only a weapon, but also a
craft
In contrast to the swords of other countries, the
greatest speciality of the katana is that, in addition to the
fittings (koshirae), the body of the blade itself also has artistic
value. The katana is mentioned in a poem entitled "A Poem about
the Katana" by Ou-yang Hsui in Baisong. This poem describes a
merchant from Yueh (southern China) travelling to Japan to buy
katana, which are already referred to as treasure swords due to their
artistic qualities evident in the fittings and appearance. Although
the poem "A Poem about the Katana" is primarily about
lamenting the fact that books lost in China still exist in Japan, and
not about the katana, it shows that the beauty of the katana was
already recognised as one of Japan's export goods by overseas
merchants from the late Heian period to the early Kamakura
period.
Do not break and do not bend
It is believed
that the manufacturing process of the katana was essentially
developed with the aim of achieving three contradictory properties
simultaneously: "non-breaking, non-bending and sharp cutting".
In modern metallurgy, "not breaking and not bending" is
referred to as "compatibility of strength and toughness".
Do
not break and cut sharply
"Cutting sharp" and "not
breaking" are also difficult to reconcile. This was achieved by
the so-called functionally graded structure, in which the cutting
edge is hard and the hardness gradually decreases towards the core,
creating residual compressive stresses at the cutting edge. The above
explanation shows that the ideal state is realised in the entire
blade, so that invisible defects can cause a sword to break easily.
However, a katana in its ideal state is rightly described as "the
strongest cutting tool in the world". The sharpness of katana is
reported everywhere. A notable example is the 'Kabuto-wari (helmet
splitting)' with katana of the Dotanuki group led by Kenkichi
SAKAKIBARA.
Katana specialises in 'cutting, separating'
A
katana is not really light if you compare the blade length, because
its handle is longer than that of other swords. However, it is one of
the lightest swords for two-handed use. A katana is originally
suitable for "slashing". However, when cutting, one must
slide and pull so that the force is directed at a right angle against
the object to be cut, as the sword itself is light. For the same
reason, a sword that is to be sharpened for "cutting and
killing" is sharpened so that it glides like a kitchen knife. If
you trace the history from the Kofun period back to the Nara period,
when swords were separated between ceremonial use and actual use,
"Keito Tachi" and "Kurozukuri-no Tachi" were only
meant for "cutting". In the Heian period, the "Kogarasu"
adopted the "Kissaki moroha-zukuri" (style with a
double-edged point) to be suitable for "stabbing" as well,
but later the swords had a curve to be suitable for "cutting"
from the wrist.
Forging technique of the katana
The
forging technique of the katana, which was very advanced at the time,
aimed to achieve three highly sought-after characteristics: "not
to break, not to bend and a razor-sharp edge.
Tatara-buki method;
the type of steel used to make a katana is called Japanese steel or
tamahagane. Tamahagane is produced using the "Tatara-buki
method", an originally Japanese method of steel production. By
using black iron sand found on the beaches of Japan, rapid reduction
at low temperatures is achieved and, compared to modern steelmaking
processes, high quality steel with few impurities is produced that is
not dependent on imported iron ore.
Heated tamahagane is
hammered into a thin flat plate using a tsuchi (hammer). When it is
quenched in water and quickly cooled, the excess carbon flakes off.
This process is called "Mizuheshi" (removal of carbon with
water). These are processes for producing raw metal called heshi
(removal process).
Tsumi wakashi (stacked and heated)
This
case-hardened piece is called heshi gane (abraded metal), which is
smashed into small pieces of metal with a tsuchi (hammer). These
pieces of metal are stacked on the tip of a forging tool called a
"teko" and wrapped in traditional Japanese paper. Straw ash
is then applied and coated with clay slurry. The whole thing is then
heated in a kiln (hodo) until the clay surface melts. The straw ash
and clay prevent the steel from scaling during heating and
oxidisation. It is then hammered into a 6x9 cm block with a kozuchi
(light hammer). If there are not enough pieces of iron, more are
stacked, heated, hammered with a kozuchi and moulded into an ingot
weighing 1.8 to 2.0 kg. This process is known as "tsumi wakashi"
(stacked and heated). In addition to tamahagane, pig iron (sentetsu),
which contains a lot of carbon, and pure iron, called Hocho tetsu,
are also processed using tsumi wakashi and shita-gitae.
Shita-gitae
(foundation forging)
The red-hot block is struck and stretched
with a tsuchi (hammer) and then folded back to the centre of its
length, which is called the "folding method of forging" and
is performed repeatedly. The word "muko-zuchi" describes
the method in which the tosho (yokoza, master) and his disciple
(sente, helper) take turns striking the blade body with the tsuchi,
and this is the root of the word "aizuchi wo utsu"
(striking). In this step, the blade is folded about five or six
times.
Tsumi wakashi (stacked and heated) again
After
completing shita-gitae with three types of steel, tamahagane
(literally "jewelled steel"), sentetsu (pig iron) and hocho
tetsu (literally "kitchen knife steel", pure iron), they
are hammered again with a kozuchi (light hammer) to produce pieces of
metal that are selected according to the correct steel composition
and stacked and shaped like the first tsumi wakashi. In this step,
four types of steel with different carbon content, shingane (centre
metal), munegane (back metal), hanokane (blade metal) and gawagane
(side metal), are produced.
Forging (Age-gitae, final
forging)
Shingane is forged 7 times, munegane 9 times,
hanokane 15 times and gawagane 12 times. Repeated forging after
folding back the forged and stretched steel removes impurities such
as sulphur, excess carbon and non-metallic impurities, resulting in a
strong and homogeneous steel.
Tansetsu (forge welding) and
wakashi-nobe (heating and lengthening)

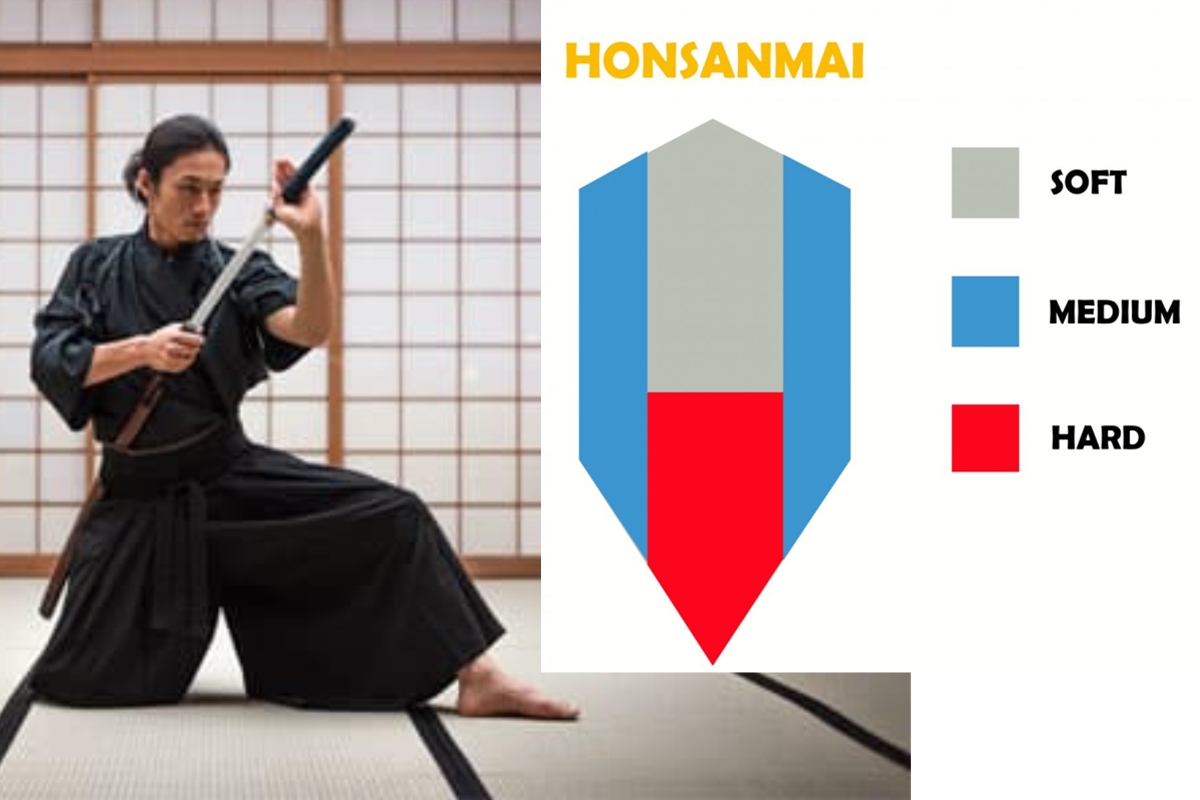

After the four types of
steel - shingane (centre metal), munegane (back metal), hanokane
(blade metal) and gawagane (side metal) - have been produced by
shita-gitae (forging), the second tsumi wakashi (stacked and heated
metal) and age-gitae (finish forging), three layers of munegane,
shingane and hanokane are forged, beaten and stretched to obtain four
times the thickness of the material, 20 mm thick, 40 mm wide and 90
mm long, and then cut into four pieces. This is called "core
metal (芯金)". The
gawagane is also heated, beaten and stretched so that it is twice as
long as the core metal, and then cut in the middle to create two
gawagane of the same length as the core metal. Gawagane, core metal
and the other gawagane are stacked in this order, heated, forged and
welded, then upset and stretched into a plate 15 mm thick, 30 mm wide
and 500 to 600 mm long. Teko" is cut off, then "Nakago",
the handle of the sword, is heated, forged and welded.
By now at the latest, it should be clear to anyone that such a sword has its justifiable price. But let's go on.
Sunobe
(moulding of the blank)
Sunobe" is made by beating and
lengthening to form the shape of the katana, and kissaki (piercing
point) is made by cutting off the end. Since this rough shape
determines the final shape of the katana, it is carefully moulded by
beating with a kozuchi.
Hizukuri (shaping with heat)
The
mune (back) of the blade is struck to form the base of a triangular
shape, and the blade side (hirachi) is struck and extended to reduce
the thickness. Then the mune of the nakago is struck to round the
trailing edge, and finally the "shinogichi" (ridge line) is
struck and shaped. The entire blade body is heated at a lower
temperature until it turns a reddish-brown colour.
Karajime
(cold forging)
After cooling, the black stain is removed by
grinding with a coarse polishing stone, and the hirachi (blade) and
shinogichi (ridge line) are hammered with a kozuchi (light hammer)
and cold forged. The straight lines of the mune and blade are
adjusted, and unevenness is scraped off with a special metal plane
called sen (銑, with the
radical of 金 and 舌,
from the right). In this step, the "hawatari (length of the
blade) and the "machi (notch)" are determined.
Namatogi
(rough grinding)
Namatogi" is performed to grind out the
marks left by the plane with a polishing stone. After oil and grease
have been removed with straw ash and water, the sword is
dried.
Tsuchioki (bottom coating)
In preparation for
"yaki-ire (quenching)", in which the heated blade is
quickly cooled with water or other liquid, "tsuchioki (ground
coating)" is performed, in which three types of yakiba-tsuchi
soil (soil used for quenching) are applied to hirachi (blade), hamon
(blade pattern) and shinogichi (burr line). Yakiba-tsuchi soil (soil
for quenching) is applied thinly and evenly on the hirachi (blade
side), then hamon (blade pattern) is designed with a writing brush
using yakiba-tsuchi soil for quenching for hamon. Finally, a thicker
layer of Yakiba-tsuchi earth (for quenching) is applied for the
shinogichi (ridge line) from the hamon (blade pattern) to the mune
(back). By using a stronger concentration of yakiba-tsuchi earth for
quenching on the shinogichi (ridge line), the blade side is cooled
quickly and completely quenched by yaki-ire during rapid cooling,
while the mune side is cooled relatively slowly and is not completely
quenched. Quenching makes the sword harder, the metal expands and
creates the pronounced curve of a katana. The mune expands less and
takes on the characteristic of toughness rather than hardness, which
supports the steel of the blade side, which is hard but otherwise
breaks easily.
Yaki-ire (quenching)
In yaki-ire, the
tosho generally dims the light in the workshop and judges the
temperature of the steel by its glow. The tsuchioki-coated blade is
inserted deep into the hodo, and the entire blade is heated evenly
from end to end to about 800 degrees. The temperature is the most
important thing, and the optimum heat condition is checked with the
utmost care. The body of the blade is then quickly immersed in a tank
of water and rapidly cooled. As mentioned earlier, the blade warps in
the water, and after it has cooled completely, it is pulled out and
sharpened with a coarse polishing stone, and the yakiba (焼刃,
cutting edge) is checked. The blade is then reheated in a charcoal
fire for "yaki-modoshi (hardening)". This work is called
"Aitori (neutralising)". As the blade also warps a little
to one side, it is struck with a kozuchi (light hammer) on a wooden
base to straighten the blade. The nakago (core) is also hardened and
moulded. After yaki-ire (quenching), the surface of the blade is very
hard and is called martensite. Depending on how the martensite looks,
the hamon (blade pattern), which looks like round particles on the
surface of the metal to the naked eye, is called nie (literally
"boiling") and is distinguished from the nioi (literally
"fragrance"), which looks like fine lines because the
individual particles cannot be distinguished. In addition to water,
other cutting tools are also quenched in oil, as are Japanese
military swords during the war.
Kajioshi (final
sharpening)
The swordsmith changes the curvature of the katana
after the yaki-ire (quenching) is completed and performs a rough
grind. In this step, small scratches, the thickness of the blade and
the jiba (blade surface) are checked and the final adjustment is
made.
Nakago jitate (core shaping)
Nakago (core) is
shaped with a sen (sharpening tool) or file, and a hole is usually
drilled for a mekugi (fixing pin) used to secure the tsuka (handle),
two in the case of a sword for iaido (Japanese martial arts). Then
yasurime (to prevent the hands from slipping on the hilt) is added,
which is unique in swordsmanship.
Meikiri (carving
inscription)
Finally, the craftsman uses a tagane (drill) to
carve his own name, address or the year in which the sword was made
into the nakago (core) as a mei (inscription). This completes the
work of the swordsmith, then a togi-shi (polisher) gives the sword
its final polish. When polishing katana, there are major differences
to other cutting tools; in addition to the sharpness as a cutting
tool, attention is also paid to the decorative elements of a katana,
and the entire body, not just the blade part, is polished.
After
the forging process, the saya-shi (scabbard craftsman) makes the
matching saya (scabbard) for the katana. Katana are not only finished
by a swordsmith. Other craftsmen, including a togi-shi (polisher) and
a saya-shi (scabbard maker), put the finishing touches to the
sword.
If you have managed to read all this information, then you now know that katanas costing, for example, $200.00, $400.00 or even $500.00 were never made as described here. These cheap swords are replicas made of simple stainless steel, they are not hand-forged swords. This should be understandable. These replicas can never match the hardness and sharpness of a real katana.
